(COMES WITH TRANSFORMER AND AU PLUG)

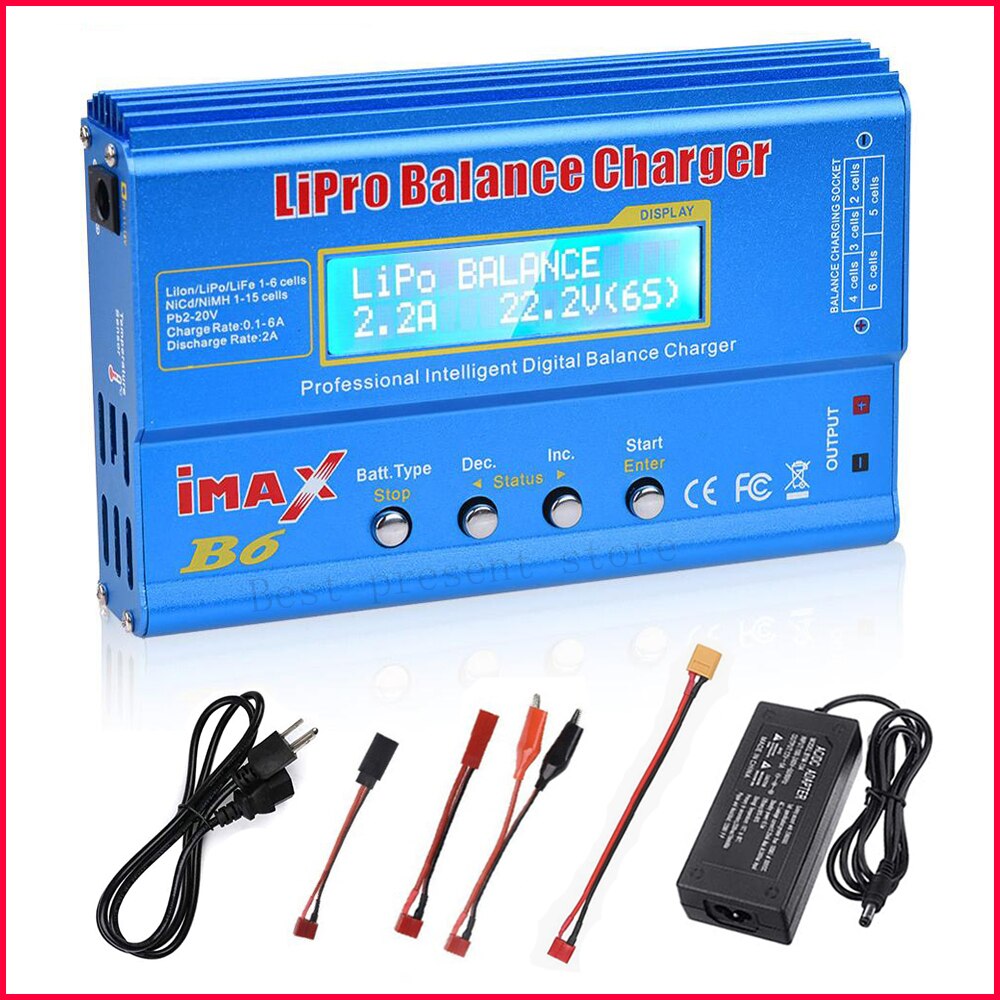

IMAX B6 LCD Screen Digital RC Lipo NiMH NiCd LiFe Pb Battery Balance Charger Discharger
IMAX B6 is the new intelligent multifunction charger which can charge and discharge ..
Lion, LiPo, LiFe , Pb, NiCd and NiMH batteries.
1. Microprocessor controlled Delta-peak sensitivity.
2. Individual cell balancing Li-ion, LiPo and LiFe capable Ni-Cd and NiMH capable
3. Large range of charge currents Store function, allows safe storage current
4. Time limit function
5. Input voltage monitoring. (Protects car batteries at the field)
6. Data storage (Store up to 5 packs in memory)
7. Battery break in and cycling.
8. Support new generation system (LiFe) battery
Operating voltage range: DC11.0-18.0 Volt / AC to DC adaptor(DC11.0-18.0V/ 6A/5A)
Circuit power: Max.charge power 50W / 80W / Max.discharge power 5W
Charge Current Range:50W 0.1~5.0A / 80W :0.1-6.0A
Discharge current range:50W 0.1-1.0A / 80W:0.1-2.0A
Current drain for balancing Li-po: 300mAH/cell
LiIon/LiPo/LiFe cells : 1-6 cells
NiCd/NiMH cells : 1-15
Pb battery voltage: 2~20v
Net Weight: 277g
Dimensions: 133x87x33mm
Chip :ATMEGA32L
15V 6A AC adapter:
Input : 100-240V AC 50/60Hz
Output : DC 15V 6A
Power:80W
Color: BLUE
DC Plug size:
Inner diameter:2.5mm
Outer diameter:5.1mm
